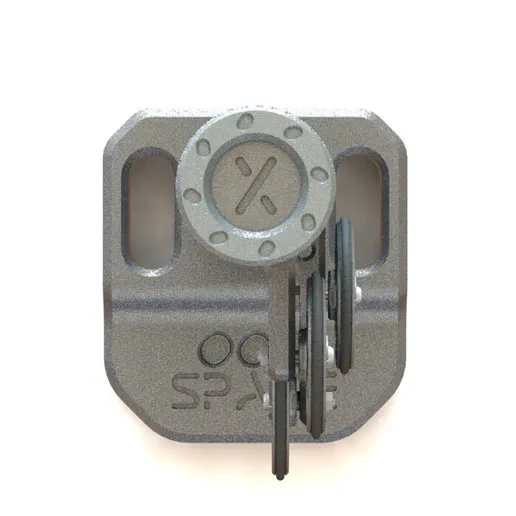

Roller Stand Rod Support
•The Roller Stand Rod Holder is designed to be smooth and precise where it matters most, providing advanced, precision-engineered supports that are the most practical for rod building while keeping costs to a minimum. The files can also be customized to suit your needs.
•The base is designed to be placed on flat surfaces and can be customized to fit your track system. Upon purchase, a message is left with a picture of the track on Facebook to work on customizing the file to fit your track.
•Note: You will need to provide nuts or T-nuts using a threaded system.
•The Roller Stand Rod Holder is precisely designed as a threaded rod holder featuring locking nuts for infinite height adjustment. The stand is 243mm high.
ALPS Rod Wrapper Rod Support Stand
3D printing settings
3D printing settings
• Layer Height 0.2
• Wall Thickness 1.6
• Infill 30%: 70%
• Support Structure Normal
•Materials PLA+
•Preferably print with PETG.
Parts list
• O-Ring M47.00 x 40.00 x 3.5 3X
• F623ZZ Bearing 3x10x4 Flanged 6X
•M3x21mm bolt 3X
•M3x10mm bolt 1X
•M5x15mm bolt 1X
•Stainless Steel Black Hex Nylon Insert Lock Nut Self-Locking Locknut M3 3X
•Threaded Insert M5x10x6 [OD] 1X
•Threaded Insert M3x5.7x4 [OD] 1X
Print List
•Base (1x)
•Threaded Rod (1x)
•Upper Arm (1x)
•Lower Arm (1x)
•Hand Nut (6x)
•Rod Lock (1x)
•Roller Wheel (3x)
•SPESR-1mm (6x)
