laptop desk stand

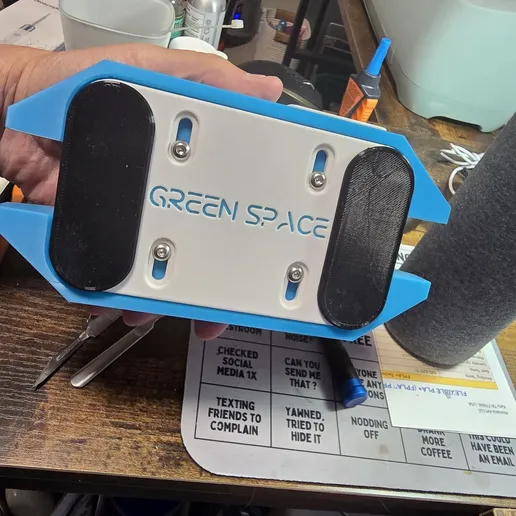

• The Laptop Dock is an excellent way to step up your office organization game. Storing your laptop horizontally saves desk space, especially when using an extra monitor. Thanks to the solid construction of the TPU platform and feet, the laptop base stays firmly in place to ensure the safety of your laptop.
• Width regulation
The laptop stand supports devices up to 34mm thick and offers adjustable width for a secure fit.
Sturdy construction
• Scratch protection
The leather or felt lining protects your laptop from scratches and provides optimal ventilation.
• Simple aesthetic
The innovative enhanced minimalist ergonomic design makes the laptop dock feel lightweight and compact.
3D printing settings
Manufacturing settings
• Layer Height 0.16
• Wall Thickness 1.6
• Infill 35%: 70%
• Support Structure Normal
Assembly
•The M5 threaded insert is installed in the holes in the base, and the screws are used to attach the three parts of the base to the pallet using screws 8 mm long and 5 mm in diameter.
•The stand is lined using soft wool felt by adding three pieces of leather or rubber inside the inner cavity of the base.
Parts list:
•Threaded Insert M5x5(H)x7(OD) 6X
•M5x8 Button Head Hex Socket Drive Screws 304 Stainless Steel 6X
Dimensions:
•Length: 18 cm
•Width: 9 cm
•Height: 4 cm
Device thickness: 0.3 cm - 3.4 cm
